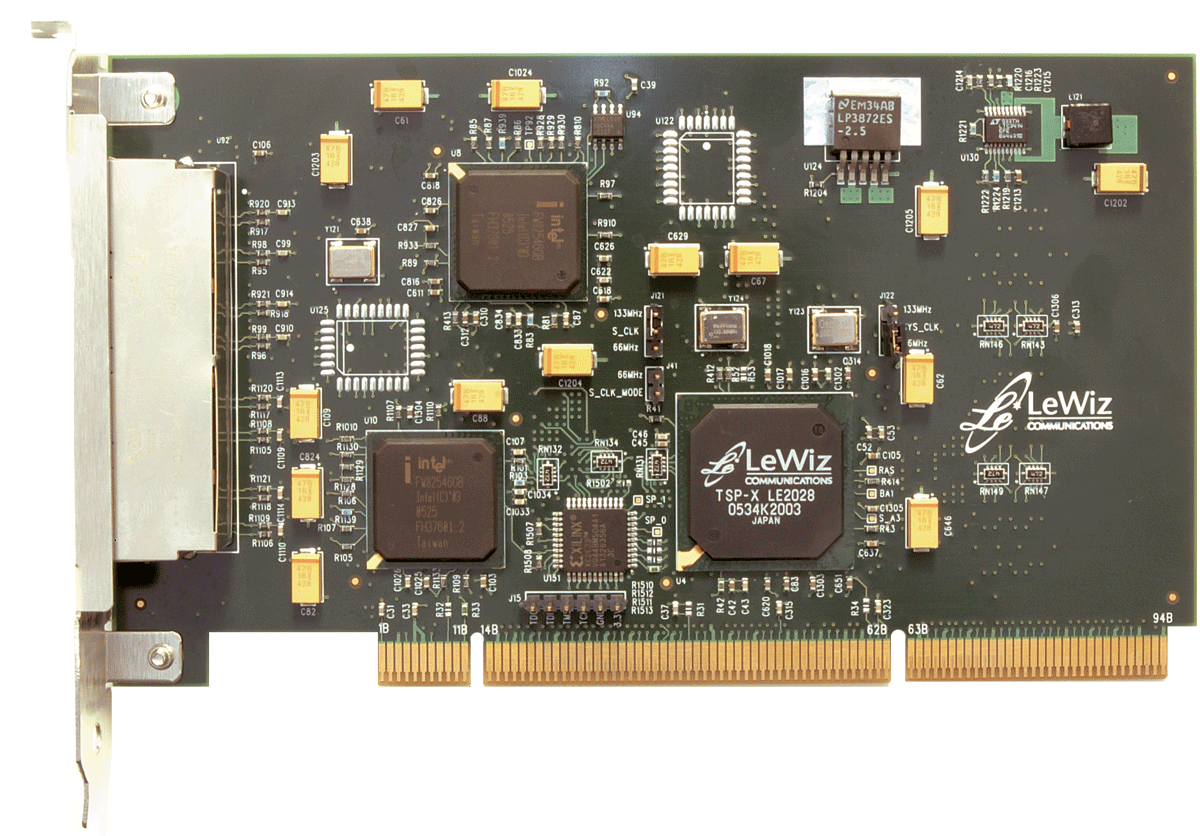

Magic2028-4P
PCI-X, Quad-port Gigabit Ethernet,
8 Gbps, 2M concurrent sessions, TOE NIC


*** NEW - Supports Windows OS in NIC mode



RedHat AS 4.0
SUSE LES 9.0
RedHat 9.0
Variety of 32/64 bit 2.6 & 2.4 kernels


LeWiz's MAGIC2028-4P™ is an ultra high performance PCI-X quad-port network interface card (NIC) with a powerful on-board TCP/IP Offload Engine (LE2028™) chip. This multi-port board is designed for high performance high connectivity networked systems such as servers, storage and networked appliances. By off-loading TCP/IP processing to hardware, the MAGIC2028-4P™ takes the host processor(s) out of the TCP/IP loop, no longer performing the major TCP/IP tasks in software. This balanced approach allows the host processor(s) to utilize most of its bandwidth to run applications, resulting in reduced system bottlenecks and enhanced system performance. Furthermore, the MAGIC2028-4P™ accelerates the TCP/IP processing to wirerate, effectively reducing network latency and overhead in network attached systems. The MAGIC2028-4P™plugs directly into the systems PCI-X slot. It has the capability of handling a load of up to 2M concurrent connections and performs 44K connections per second complete set-up and tear-down.

TCP/IP is the protocol used to communicate server to server, server to PC, server to storage, server to network appliance, and the list of applications continues to expand. Unfortunately, TCP/IP places a very heavy burden on host CPUs. With the advent of Gigabit Ethernet and higher, server CPUs have begun to choke while processing the TCP/IP overhead associated with transferring data. This board offloads the TCP/IP processing from the host CPUs, freeing up valuable CPU cycles for application processing while maintaining the programmability, configurability, and flexibility via the host interface. Designed for maximum wirerate throughput across the ports. It also supports fail-over protection/alternate pathing and load balancing/trunking/ bonding capabilities required in high-performance server and storage systems. The result is faster servers, an accelerated network, and superior application performance, saving cost and improving reliability for the enterprise network. The MAGIC2028-4P™ is ideal for network intensive environments such as file serving, network attached storage (NAS), high performance technical computing, high-end backup and restore, IP storage, and video serving.

Using LeWiz's advanced layer-processing architecture, the MAGIC2028-4P™ with the LE2028™ chip offers the highest performance, lowest power and most cost effective way of addressing the performance bottlenecks found in many IP network attached equipment.

Benefits

Low power NO heatsinks

Lowers overall network cost

     - 4 bi-directional ethernet ports (8Gbps)

     - Increases throughput and load handling for systems

     - Delay new purchase of hardware and software

     - Better reliability, less downtime
Enhances and balances system performance

     - 44k connections per second, set-up/tear-down

     - 2M concurrent connections

     - Allows processor to run applications efficicently
Optimize the network efficiency

     - Achieve wire speed, full duplex

Enhances System security

Reduces network maintenance and service cost

Non-intrusive to system hardware and software

Easy plug-n-play installation

Features

Performs TCP/IP functions in hardware, not software, for lowest latency and overheard

Handles MACs directly without CPU intervention

Optional local memory, utilize system memory

Full TCP/IP offload

Supports fail-over protection (alternate pathing)

Supports port aggregation, bonding

On chip DMA engine for high speed data throughput

Full remote diagnostics capability

Qualified across multiple host platforms from Dell™, HP™, IBM™, SUN™, TYAN™, and others

Supports all CPU types: Opteron™, Pentium™, XEON™, PowerPC™, SPARC™, MIPS™, and others

Board size: Short Form PCIe NIC (4.2” x 6.6”)

Applications

Server (application servers, Web/DNS/e-mail/file servers, etc.)

Storage (iSCSI, SAN/NAS, etc.)

iSCSI NIC, initiator or target

Remote KVM switching

Security appliances (firewalls, load balances, etc.)

Network appliances

Compression systems

Streaming Multimedia


Product Functionality

Compatible with PCI-X 1.0b and PCI 2.2 Standards

64-bit/133/100/66MHz, 3.3V PCI-X bus interface

Compatible with IPv6 amd IPv4

External SDRAMs extend up to 2M concurrent connections

Concurrent transmit and recieve operations across all ports

Buffers optimized for fast packet & stream transfers

Full software support with device driver


TCP/IP Features Supported

Full TCP/IP offload

Non-intrusive to existing TCP/IP stack

Reassembly of incoming data

Segmentation of outgoing data

Sequence ordering - handling out of order segments

Overlap elimination - handling duplicate segments

Re-transmission, Flow control, etc.

TCP timer handling

Connection set-up and tear down

Hardware checksum processing

Window scaling, updating, and sizing







                 8Gbps Quad-Port TCP/IP Offload TOE NIC

Ordering Part#:
(Please specify your specific OS version when ordering)

Magic2028-4P
