MAGIC2020™ multi-port HBA, low power, 2 Gbps Ethernet ports, 4Gbps, 256K concurrent sessions, PCI interface |
RedHat AS 4.0 SUSE LES 9.0, RedHat 9.0 Variety of 32/64 bit and 2.6/2.4 kernels
LeWiz's MAGIC2020™ is an ultra high performance multi Gbps dual-port host bus adapter card with powerful on-board TCP/IP
Offload Engine (LE2020™). Designed to off-load TCP/IP processing from host processor(s). It solves bottlenecks in
high-performance networked systems such as servers, storage, and networked appliances. This takes the main processor(s)
out of the TCP/IP loop, so that it no longer performs the major TCP/IP tasks in software.This balanced approach allows the
main (host) processor to utilize most of its bandwidth to run applications. The LE2020™ accelerates the TCP/IP processing
at lightning speed thus reducing network latency and overhead in network attached systems. It has the capability of
handling a load of up to 256,000 concurrent connections.
TCP/IP is a protocol used to communicate server to server, server to PC, server to storage, server to network appliance,
and the list of applications continues to expand. Unfortunately, TCP/IP places a very heavy burden on host CPUs. At
Ethernet speeds of 10/100, most CPUs can handle the TCP/IP processing overhead. It is a standard rule of thumb that a CPU
of 1KHz is required to process TCP overhead associated with transfering data 1Kbit/sec. With the advent of gigabit
Ethernet, server CPUs have begun to choke while processing the TCP/IP overhead associated with transferring data. Since
every Ethernet port is bi-directional that means that each port consumes 1Gbps in and 1Gbps out. So the host processor
handling two ports has to run at 4GHz just to process the TCP/IP protocol. When this happens, the application that is
being used, comes to a complete stop. The obvious solution is a TCP/IP Offload Engine (TOE) like the LE2020™. This chip
offloads the TCP/IP processing from the host CPUs, freeing up valuable CPU cycles for application processing while
maintaining the programmability, configurability, and flexibility via the host interface. It also supports fail-over
protection/alternate pathing and load balancing/trunking capabilities required in high-performance server and storage
systems. The result is faster servers, an accelerated network, superior application performance, saving cost and improve
reliability for the enterprise network. The MAGIC2020™ card is ideal for network intensive environments, such as file serving,
network attached storage (NAS), high performance technical computing, high-end backup and restore, IP storage, and video
serving.
Using LeWiz's advanced layer-processing architecture, the LE2020™ offers the highest performance, lowest power and most
cost effective way of addressing the performance bottlenecks found in many IP network attached equipment.
|
Benefits

Low power (4.2W/board), NO heatsinks

Lowers overall network cost

- 2 bi-directional port (4Gbps)

- Increases throughput and load on system

- Delay new purchase of hardware and software

- Reduced heat, better reliability, less downtime

Enhances and balances system performance

- 256K concurrent connections

- 4Gbps speed

- Allows processor to run applications efficiently

Optimize the network efficiency

Enhances system security

- Achieve wire speed, full duplex

Enhances system security

Reduces network maintanence and service cost

Non-intrusive to system hardware and software

Lead-Free

Features

Performs TCP/IP functions in hardware, not software, for lowest latency and overhead

Handles MACs directly without CPU intervention

95% CPU offload

Suports fail-over protection (alternate pathing)

On chip DMA engine for high speed data movement and throughput

Full remote diagnostics capabiliy

Tested across multiple host platforms from Dell™, HP™, IBM™, and SUN™

Supports all CPU types: Pentium™, PowerPC™, SPARC™, MIPS™, processors or any embedded processor

Board size: Short Form PCI Host Bus Adapter (3.9" x 6.8")
Applications

Server (application servers, Web/DNS/e-mail/file servers, etc.)

Storage (iSCSI, SAN/NAS, etc.)

TCP/IP Accelerated, Offload Adapter Card

RDMA NIC

Security appliances (firewalls, load balances, etc.)

Network appliances

Compression systems

Streaming Multimedia

Product Functionality
Compatible with PCI 2.2 standard

64 bit, 66/33MHz, 3.3V PCI bus interface

Low cost, low power external SDRAMs

Concurrent operation on primary and secondary bus interfaces

Concurrent transmit and receive operations

Buffers optimized for fast packet & stream transfers

On-chip phase lock loops for low external clock skew

Full software support with device drivers, utilities
TCP/IP Features Supported

Full TCP/IP offload
Non-intrusive to existing TCP/IP stack

Reassemembly of incoming data

Sequence ordering - handling out of order segments

Overlap elimination - handling duplicate segments

Re-transmission, Flow control, etc.

TCP timer handling

Connection set up and tear down

Hardware checksum processing

Window scaling, updating, and sizing

Applications

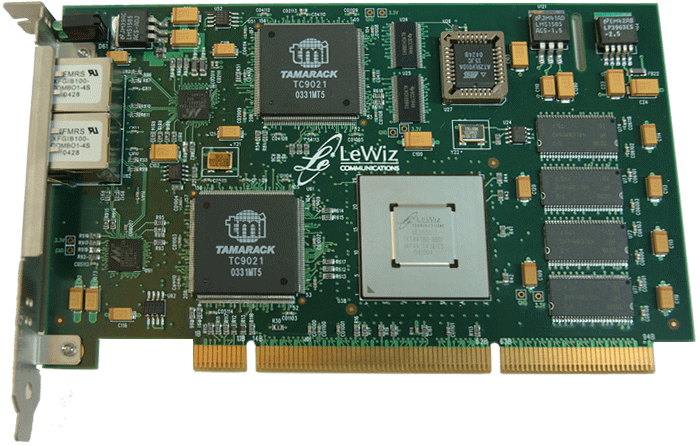

Figure 2: Dual Gigabit MAGIC2020™ HBA Card with LE2020™ TCP/IP Offload Engine
Ordering Part#:
(Please specify your specific OS version when ordering)
Magic2020
